Hệ Tủ Thao Tác PCR Biobase Trung Quốc PCR Mini

Model

PCR-mini

External Size（L*W*H）mm

2100*710*1900

1600*700*1900

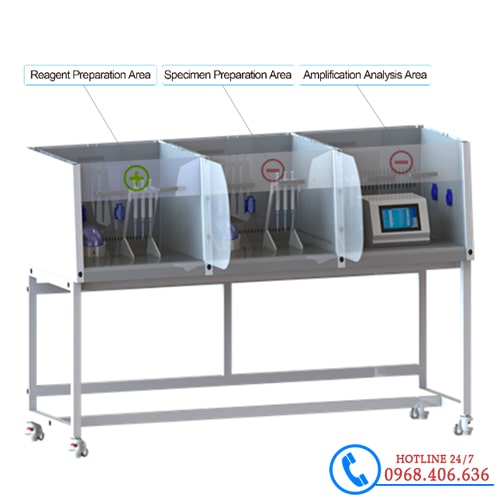

Reagent Preparation Area

Operating Area Size（L*W*H）mm

640*570*510

440*570*500

Pressure

Positive

Airflow Velocity（m/s）

0.45

Airflow Volume（m3/h）

420

310

Exhaust Type

-

Specimen Preparation Area

Operating Area Size（L*W*H）mm

660*570*510

560*570*500

Pressure

Negative

Airflow Velocity（m/s）

Downflow: 0.33±0.025

Inflow: 0.53±0.025

Airflow Volume（m3/h）

250

210

Exhaust Type

TypeA2, 30% exhaust, 70% recirculation

Amplification Analysis Area

Operating Area Size（L*W*H）mm

640*570*510

440*570*500

Pressure

Negative

Airflow Velocity（m/s）

0.4

Airflow Volume（m3/h）

180

160

Exhaust Type

100% exhaust

HEPA Filter

Four, 99.999% efficiency at 0.3μm. Filter life indicator.

Clean Level

Class 100（ISO Class 5）

Front Window

Manual, Toughened glass, Anti UV

Max Opening

380mm

Noise

≤67 dB（A）

Vibration

≤5μm

UV Lamp

15W*3, UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination

LED Lamp

8W*3

Illumination（lx）

≥650( Each area)

Sockets

The load of two sockets (Each area): 500W, total 6 sockets

Display

LCD

Control System

Microprocessor

Visual and Audio Alarm

Filter replacement, window over height, abnormal air flow velocity

Work Surface Height

750 mm

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Consumption

500W

Standard Accessory

LED lamp*3, UV lamp*4, Windproof plate*2, Waterproof sockets*6

Package Size

(W*D*H)

2240*970*1450mm

1750*980*1440mm

Gross Weight

450kg

330kg
